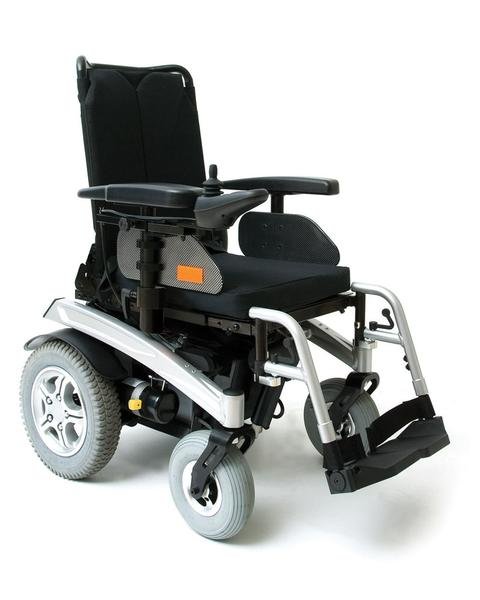

Pride R-40 Fusion Power Chair

The R-40 Fusion rear-wheel drive power chair delivers aggressive,

terrain-gripping torque and comes standard with a top speed of up to 10km/h (6mph).

The innovative, compact design of the R-40 Fusion makes it

highly manoeuvrable in tight spaces without sacrificing

traditional rear-wheel drive performance.

AU_R-40 Sell Sheet 9-17

ion_r40_omau_fus





Weight capacity	136 kg (300 lbs.)
Maximum speed	Up to 10 km/h (6 mph) (standard)
Ground clearance	7.3 cm (2.87”)
Turning radius	96.5 cm (38”) (w/ foot riggings)
Overall length	89 cm (35”)
Overall width	63.5 cm (25”) (at rear wheels)
Drive wheels	35.5 cm (14”) pneumatic
Anti-tips	7.6 cm (3”) solid (rear)
Casters	22.8 cm (9”) pneumatic (front)
Suspension	N/A
Drive train	Two-motor, rear-wheel drive
Braking system	Intelligent braking (electronic, regenerative disc brakes)
Standard electronics	70 amp PG VR2 controller
Standard seat	Sling (seat integrated with base)
Specialty controls	No
Battery charger	Off-board, 5 amp
Per-charge range	Up to 26 km (16 miles)
Battery requirements	(2) 12 volt deep-cycle
Battery size (largest)	55 AH
Battery weight3	17.24 kg (38 lbs.) each
Base weight	47.6 kg (105 lbs.) (w/o batteries)
Standard seat weight	N/A (seat is integrated with base)
Std. seating dimensions	40.6 cm x 45.7 cm (16” x 18”)
Warranty	2-year limited
