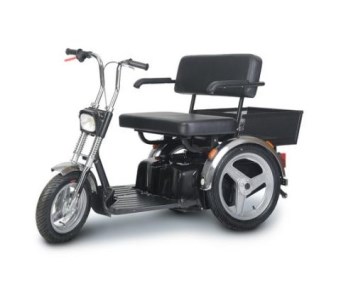

Afiscooter Classic SE

A 3 wheeled battery powered heavy duty scooter designed to provide
comfortable rough terrain performance. The controls are mounted on
the adjustable height motor bike style handle bars. It features a full lighting system and large wheels. Large rear basket is standard.

Considerations

Transport Accessibility
Overall length of this scooter ………..1680 mm
Overall width of this scooter ……….. 900 mm
The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.

Three wheeled mobility aids of any kind are unstable in normal bus operations and will not be carried because of the safety risk.

Factors applying to all scooters
* This item should be trailed in the user’s own environment to ensure maximum safety and independence. Environmental considerations include eg: kerbs, footpaths, tram and railway crossings, street crossings, etc
* Users should take care when riding a scooter or powered wheelchair and observe the following safety guidelines:
* Users who intend to use scooters or powered wheelchairs must ensure they have the necessary physical and cognitive skills to operate and manoeuvre them safely
* Stay within the legal speed limit of 10km/h
* Be aware that taking medication or driving under the influence of alcohol may affect the user’s judgement
* Always make sure that you are clearly visible, particularly at night or on dull days-use the lights and reflectors and install a reflective flag high enough to be seen by motorists
* Wear a bicycle helmet whenever possible
* Slow down when you are near other people, especially pedestrians and cyclists
* Avoid stopping or driving on inclines greater than your scooter is designed for
* Use footpaths if possible. If there are no foot paths, plan to user quieter roads
* Plan your trip and avoid uneven surfaces, dips and potholes
* Ensure if you are carrying parcels that the load will not over-balance your scooter and the parcels do not interfere with your controls or vision

More Details

Frame:
* Steel chassis
* Plastic motor and battery cover

Seat:
* Vinyl padded seat and fold down backrest
* Sportster seat swivels through 360 degrees and lifts off
* Double Sportster seat tilts back to allow access to batteries

Armrests:
* Moulded plastic
* Lift-up

Handlebars:
* Height adjustable

Controls:
* On right handlebar: indicator switch, forward/reverse switch, red accelerator lever, hand brake
* Optional: controls on left handlebar
* Midway down handlebars: 2 speed switch, emergency lights, headlights, battery charge indicator

Light System:
* Front and rear lights, indicators, emergency lights

Brakes:
* Electromagnetic with emergency hand/park brake

Batteries:
* 2 x 12v up to 75amp/hr



Wheels:
* 1 x Front pneumatic 387mm x 70mm
* 2 x Rear pneumatic 508mm x 70mm

rear basket are standard.
* Seat and handlebars are removable
* Requires a trailer or large vehicle to transport
* Twin seater model available with double rear wheels
